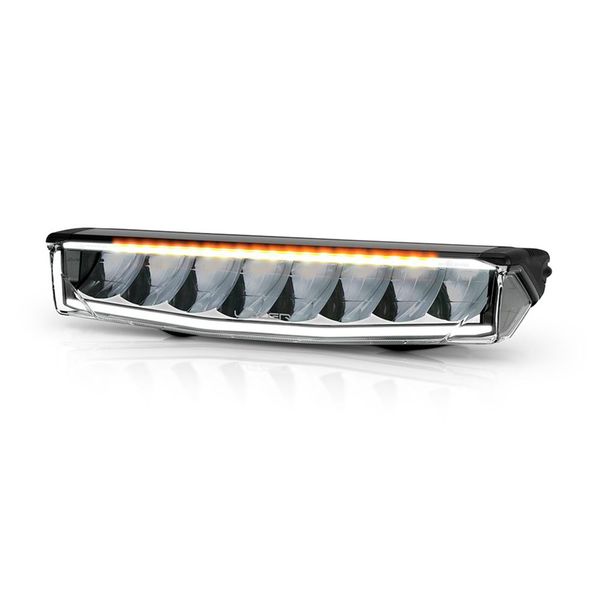

Led bar Lazer AIR-55 Beacon - Straight / 41 cm / 55W / Ref. 12.5

The Lazer AIR-55 is a R65XA1-approved warning light version of Lazer's stunning design and excellent performance AIR-55 auxiliary light. The AIR-55 Beacon is a small, striking and powerful auxiliary light designed specifically for the needs of heavy equipment, which in addition to an orange warning light has two different power modes, an orange and white parking light and a high-quality combination beam.   The AIR-55 Beacon, which is powerful for its size, offers 6800 lumens of light output in the off-road E-Boost mode, according to the manufacturer, and a beam of light that can reach up to 524 meters (1 lux). The panel's highly reflective vacuum metallized reflector surfaces, combined with high-performance LEDs, create a pleasant combined light pattern that illuminates both far ahead and wide on the edges of the road. The beam, optimized for heavy equipment use, opens perfectly even when mounted high, and thanks to the separate beacon function, this additional light panel is the perfect solution for all vehicles that drive both on roads and on construction sites and off-road.

The AIR-55 Beacon warning light is approved for road traffic use in accordance with the ECE R65XA1 standard, so it can also be used in traffic outside construction sites. The warning light can be used, for example, in special transport, when the vehicle moves from the road to the construction site or in traffic control. The bright orange beacon light stylishly lights up both at the bottom of the lens and at the ends of the upper edge, so that it will not go unnoticed even in bright daylight. In addition to its excellent lighting properties, the AIR-55 Beacon has a special Welcome mode, where the parking light turns on and off dynamically as a greeting, and the so-called "Flash To Dim" function, which allows the driver to easily switch between road-approved and unlimited power mode while driving whenever he wants.

The eye-catching appearance of the AIR product family is largely due to their innovative monocoque lens, which continues not only along the front edge of the panel but also under and to the sides of the lamp. The part of the lens below the panel is textured, which further emphasizes the unique look of the lamp. The body made of anodized aluminum is finished with high-quality powder paint, which in addition to its style, guarantees excellent protection against corrosion and chemicals. The lens is made of practically unbreakable polycarbonate, and the panel is also completely water and dustproof in accordance with the IP68 rating. This is an excellent additional light set in terms of lighting properties, appearance and durability, which is suitable for daily use in any vehicle. Five-year (60-month) warranty!

Note: AIR auxiliary lights are equipped with E-Boost technology, which allows for both on-road and off-road power modes. E-Boost mode is not on-road, and the difference between on-road and unrestricted power modes is clearly visible.

Delivery content

• Lazer AIR-55 Beacon
• Power cable with 6-pin Superseal connector, 20 cm
• Centre Mount mounting system
• Connection and installation instructions

Specifications

• Make and model: Lazer AIR-55 Beacon
• Intended use: As an additional light in heavy equipment / SUV's
• Operating voltage: 10-32V
• Reference number: - (E-Boost) / 12.5 (road mode)
• Manufacturer's declared power: 55 W
• Manufacturer's stated current consumption: 2.29A @ 24V
• Manufacturer's declared luminous efficacy: 6800 lm (E-Boost)
• Manufacturer's stated range: 524 m @ 1 lux / 1048 m @ 0.25 lux (E-Boost)
• Manufacturer's stated color temperature: 5000K
• Connector: 6-pin Superseal
• Cable length: 20 cm
• Dimensions: 411 x 82 x 106 mm (Width x Height x Depth)
  • Height with foot: 82-98 mm
• Weight: 1650g
• Frame: Anodized aluminum
• IP rating: IP68
• Approvals: EMC: ECE R10, R65XA1, R148, R149*
  • *Road traffic approval does not apply to E-Boost mode
• Made in the UK
• Warranty: 60 months

Installation guide

You can find the manufacturer's installation and connection instructions (EN) by clicking here.
