Auxiliary light Purelux Panther 9 - Round / 23 cm / 210W / Ref. 25

PRODUCT DESCRIPTION - DELIVERY CONTENTS - TECHNICAL DATA

• PowerBoost® technology
• Long throwing yet wide light beam
• Warning light approved for road traffic
• 12314 lumens, 709 meters (@ 1 lux)
• Optimal 5000K color temperature
• Stylish two-color parking light
• Frameless Lexa polycarbonate lens

Purelux Panther 9 is a shockingly powerful auxiliary light that shakes up the market of round driving lights with a fierce performance, one of the best combination light beams on the market, an R65-approved warning light function and a unique appearance. The light has two different power modes, i.e. it can be switched on either the more moderate power mode approved for road traffic or the PowerBoost® mode that releases unlimited light output. The innovative user interface switch integrated into the light allows you to change the power modes easily and quickly, even directly while driving, so there is no need to make any additional connections!

In PowerBoost® mode, the measured (in LightLab) light output of just one light is 12314 lumens, with a range of up to 709 meters (1 lux), and when two or more lights are installed side by side, in the darkness of the night the unnoticeable row of black panthers turns into a light phenomenon that signs the way ahead in an unprecedented way. The attention-grabbing design, stylish details and the orange or white parking light at the bottom of the light make the Panther 9 an eye-catching revelation, and thanks to the black color it fits neatly into any vehicle.

Note! The same lamp is also available with a white frame: Purelux Panther 9 White

"Notorious Panther performance"

Unlike usual, there is no need to connect or disconnect any extra wire to activate the lamp's different power modes, instead switching between PowerBoost® and road traffic mode is possible using a unique selection integrated into the user interface. The power mode can therefore be changed easily and quickly, even while driving. Read more below!

Note! You can clearly see the difference between Purelux PowerBoost® and road traffic mode - PowerBoost® mode is significantly more efficient and should not be used when driving in normal road traffic, only off-road.

The light beam of the Panther 9 consists of a rectangular wide main beam, which is a perfect combination of both range and width. The light beam opens right away and illuminates the whole road from side to side, while the brighter main spot in the middle of the beam directs the light far ahead. In the vertical direction, the light beam is softly delimited, as usual from other lights of the Panther series, thanks to which the light is not lost in the sky and a ball of light does not form in front of the car. However, the height of the light beam is optimized to be sufficient for hilly terrain and roof installations of heavy equipment.

Unlike many other additional lights on the market, the Panther 9 is equipped with an R65-approved orange warning light, which can be used e.g. in special transports, when the vehicle moves from the highway to a construction site or, for example, in traffic control. A bright, brilliant warning light will not go unnoticed by anyone, so the safety of those working on the vehicle can be guaranteed without separate warning lights. The warning light can be installed, for example, behind a separate switch, so that it can be used whenever necessary. The warning light has five different flashing functions, in addition to which the lights can be synchronized with each other, so that they flash at the same time and the overall appearance of the vehicle is uniform.

Along with the precisely finished light beam, a feature that significantly improves the driving experience is the light's neutral color temperature of 5000 Kelvin. Neutral color temperature is optimal for road traffic, as it facilitates the observation of terrain shapes and obstacles and does not distort the color of the object. In addition, it dazzles less cool tones from e.g. snow cover or in fog and rain, and reduces the strain on the eyes. The 5000K color temperature also suits newer cars with LED or Xenon lights as standard, and brings the desired brightness and sharpness even alongside traditional halogen lights.

The appearance of Panther 9 differs from the usual, and its unique design, the orange or white parking light running spectacularly at the bottom of the lens, and the dark optics give the lamp a unique and street-credible overall look. The brazenly non-standard appearance, combined with the 9" size and ferocious performance, make the Panther 9 an excellent addition to the equipment of heavy equipment and construction site vehicles as well as vans and SUVs. The lamp's exceptionally low reference number (25) allows several lamps to be installed in the same vehicle without affecting the car's own high beams need to be cut out of use, so this light cannon can also be installed in passenger cars!

"Purelux Panther series is made with uncompromising quality and top of the line performance. Every feature is finely tuned to fit any type of situation and vehicle. Don't hesitate, ride with the Panther!” - Purelux

The light is supplied with a mounting foot, and the installation is facilitated by the 2-pole DTP connector already in place in the light's power cord, as well as separate wires from the power cord for the parking lights, warning light, and warning light synchronization. Unlike many other additional lights of the same size, the Panther 9 also has a ready-made mounting hole for the upper support bar, which enables a sturdy installation. The wide operating voltage range (9-36V) enables installation in both 12V and 24V systems. The lamp is protected against radio interference in accordance with the ECE R10 standard. Three-year (36 months) warranty!

Valostore's comment: "Panther 9 is a much-needed round addition to Purelux's Panther product family. We've been waiting for this light for a couple of seasons, and now it's finally here! We're particularly excited that the Panthers' ferocious power and high-quality spotlight have been brought to a round shape - of course decorated with small twists. This light serves practically all motorists, and exceptionally, its versatile features do not eat each other, but rather complement each other. In addition, the two different color options give everyone the opportunity to create a light ensemble that suits their appearance."

Basic delivery content (1 pc)

• Purelux Panther 9
• Mounting leg
• Power cord with DTP-2 connector
• Connection and installation instructions (FI/SE/NO/DK)

Delivery contents (2 pcs - Complete set)

• 2 x Basic delivery contents
• Additional light holder for the EU license plate
• Relay cable set Purelux Pro Serie 12V, HD DTP (1 pc 2-output)
• Stabilizer, 2 pcs

Delivery contents (3 pcs - Complete set)

• 3 x Basic delivery contents
• Additional light holder for EU license plate, for 3 lights
• Relay wiring kit Purelux Pro Serie 12V, HD DTP (1 pc 3-output)
• Stabilizer , 4 pcs

Delivery contents (4 pcs - Complete set)

• 4 x Basic delivery contents
• Additional light stand Purelux HD, for 4 lights
• Relay wiring kit Purelux Pro Serie 12V, HD DTP (1 pc. 4-output)
• Stabilizer, 4 pcs

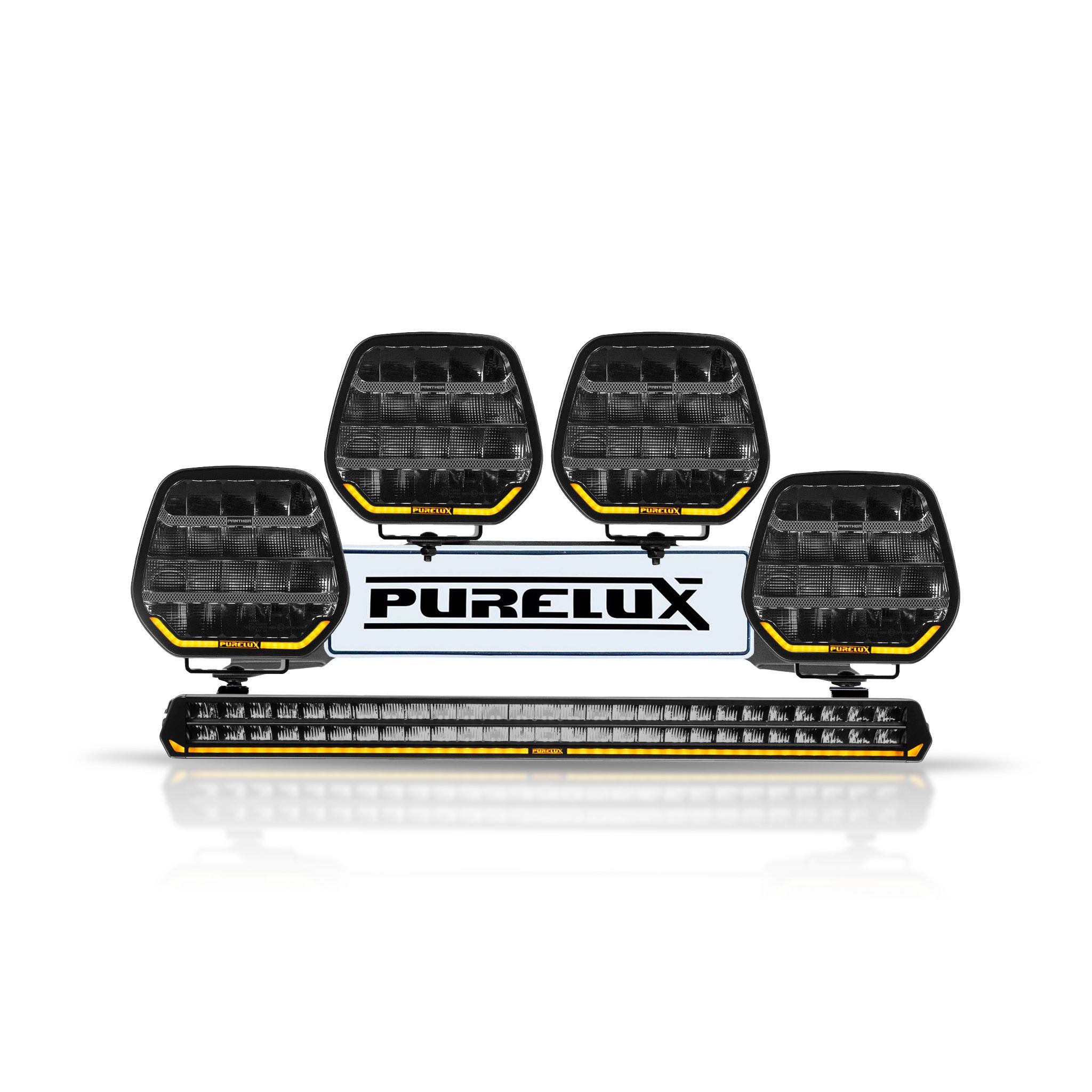

Delivery contents (4 pcs - Complete set WRC)

• 4 x Basic delivery contents
• Auxiliary light holder Purelux WRC, 4 lights
• Relay wiring kit Purelux Pro Serie 12V, HD DTP (1 pc 4-output)
• Stabilizer, 4 pcs

Delivery contents (5 pcs - Complete set WRC)

• 5 x Basic delivery contents
• Auxiliary light holder "Rally 5", 5 lights
• Relay wiring kit Purelux Pro Series 12V, HD DTP, (1 x 1-output, 1 x 4-output)
• Stabilizer, 6 pcs

Note! From 2 pcs - Complete Set you can buy the above set either as it is OR take in addition to it the XBB OBD Dongle & PowerUnit connection relay (see product options), with which the auxiliary light can also be connected to CAN-bus controlled lights. Instead of a traditional wiring harness, this set comes with a wiring harness with a Plug&Play-type place for the XBB relay (Relay wiring harness Purelux Dualrelay 12V, DTP). In short, the connection using the XBB relay is carried out by inserting the control device (OBD Dongle) into the OBD-II port of the car and placing the PowerUnit relay in a ready position in the supplied wiring harness next to the original relay of the wiring harness. The control device placed in the OBD port catches the high beam signal from the CAN bus and sends the information completely wirelessly to the relay in the wiring harness, which in turn controls the additional light according to this signal.

See the car models compatible with the XBB Dongle & PowerUnit connection relay here.

Technical specification

• Brand and model: Purelux Panther 9
• Purpose: As an additional light in cars / work machines
• Operating voltage: 9-36 V (DC)
• Reference number: 25
• Calculated power: 210 W
• Power consumption measured by Valostore
  • Purelux PowerBoost®: 8.125A @ 24V
  • Road mode: 1.79A @ 24V
  • Warning light: 0.61A @ 24V
• Power measured by Valostore
  • Purelux PowerBoost®: 195 W @ 24V
  • Road traffic mode: 43 W @ 24V
  • Warning light: 14.7 W @ 24V
  • Parking lights: 4.1 W @ 24V
• Light output measured by Valostore: 12314 lm (Purelux PowerBoost®) / 3872 lm (Road traffic mode)
• Range measured by Valostore: 709 m @ 1 lux / 1418 m @ 0.25 lux (Purelux PowerBoost®)
• Range measured by Valostore: 387 m @ 1 lux / 774 m @ 0.25 lux (Traffic mode)
• Range with more light, measured (PowerBoost® / E-approved, @ 1 lux):
  • With two: 1003 m / 547 m (@ 1 lux)
  • With three: 1228 m / 670 m (@ 1 lux)
  • With four: 1418 m / 774 m (@ 1 lux)
• Color temperature stated by the manufacturer: 5000 K
  • Measured by Valostore: 5019 K
• Mounting: Mounting leg
• Connector: DTP-2
  • Separate parking lights and warning light + wires
• Cable length: approx. 100 cm
• Dimensions: 225 x 200 x 77 mm (Width x Height x Depth)
  • Height with mounting foot: 214 mm
• Weight: 2470 g
• IP rating: IP69K
• Approvals: ECE R10, R148, R149, R65, CE, RoHS
  • Road traffic approval does not apply to the Purelux PowerBoost® mode
• Warranty: 36 months
• Importer: Handshake.fi
•

Installation guide

Coupling

• DTP connector: Additional light
• Yellow: Orange parking light
• White: White parking light
• Green: Warning light (R65)
• Grey: Synchronizing the warning light / changing the operating mode of the warning light

Changing the power mode with UI technology: The first time the lamp is used, it lights up in PowerBoost mode. To change the power mode, turn the light off, then turn the light on for two seconds, and turn the light off and on 2 times in 1.5 seconds to change the power mode. Repeat to change the power mode again.

Synchronization and warning light functions:

• Warning light: Connect green wire to power (+)
• Synchronization: Synchronize multiple warning lights by connecting the gray wires together
• Warning light pattern: Connect the gray wire to power (+) for less than 1 second, the pattern will change
• Reset: Connect the gray wire to power (+) for at least 3 seconds to return directly to the first pattern of the warning light

You can find the manufacturer's connection and installation instructions by clicking here.
