Canbus-relay Lazer CANNY Interface

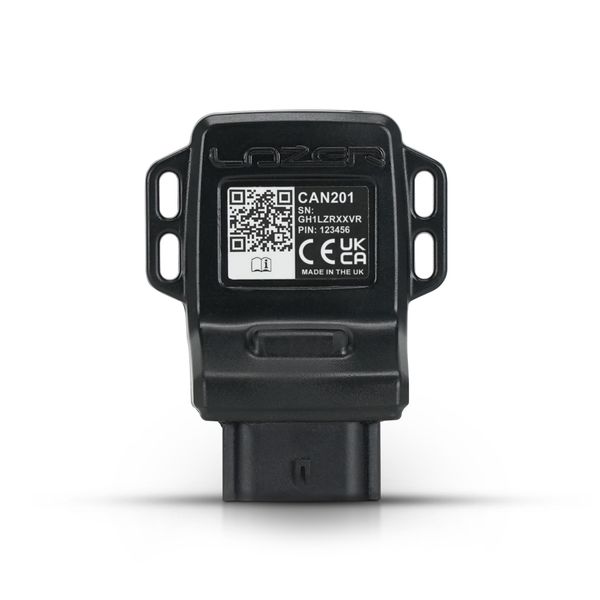

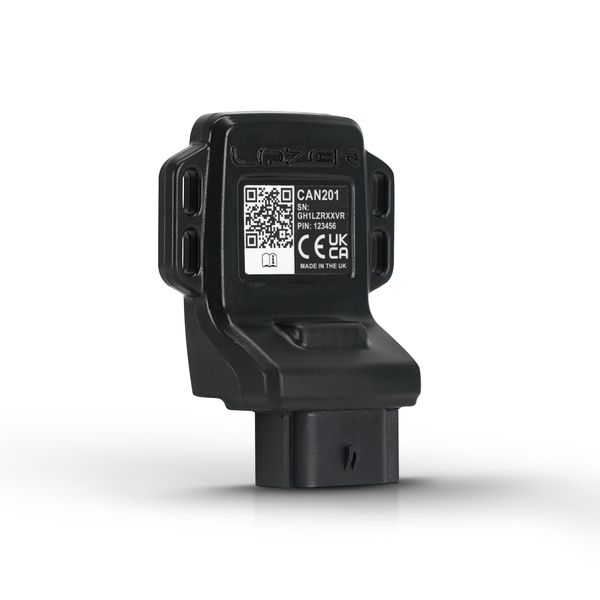

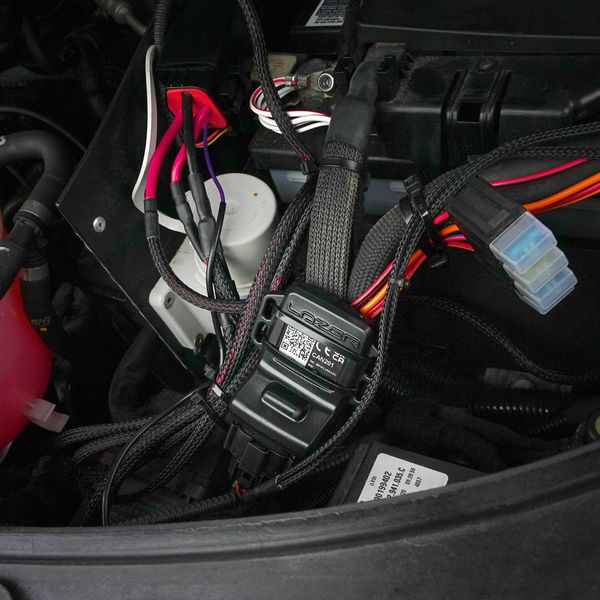

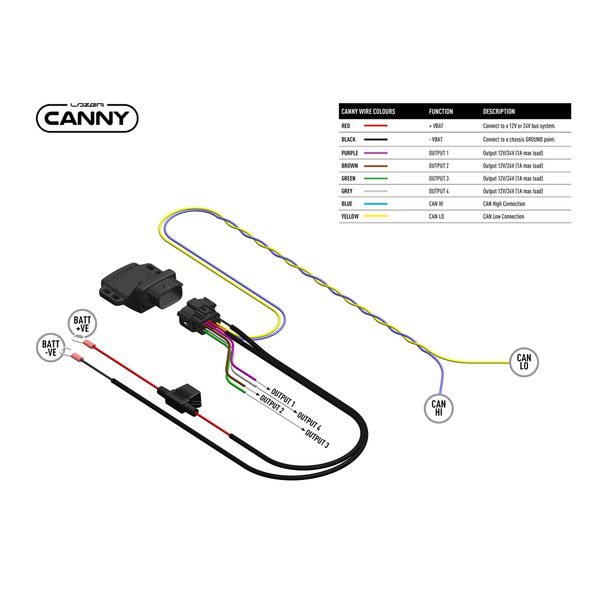

The Lazer CANNY Interface is a switching relay mounted on the vehicle's CAN bus that picks up an additional light from the bus. The system consists of a Canny Dongle, a wiring harness and a mobile app. The app provides brand and model-specific wiring instructions, and after installation, any updates, such as changes to CAN "recipes" made by the vehicle manufacturer, can be conveniently performed via the app using Bluetooth. The wiring harness of the kit includes pre-wired wires (blue and yellow) for CAN Hi and CAN Lo, a fuse for the battery positive connection and a ground wire. The wiring harness has a total of four outputs that can be programmed to respond to different inputs, such as auxiliary light, auxiliary parking light, reversing light, warning light, etc. However, the CANNY Interface wiring harness only provides excitation current to the lights, meaning that a separate relay wiring harness is also required for installation.

Model-specific wiring instructions can be found in the mobile app. For a list of compatible vehicles, click here.

CANNY Iterface provides only excitation current for the auxiliary light, which means that you will need a separate relay wiring harness. You can find the relay wiring harnesses here: ready-made wiring harnesses for the installation of auxiliary lights.

Note! Always check with your vehicle's importer to ensure the correct bus connections.

Technical data

• Product:Lazer CANNY Interface
• Purpose: To connect an auxiliary light to a CANNY bus controlled vehicle.
• Operating voltage: 12V
• IP rating: IP68

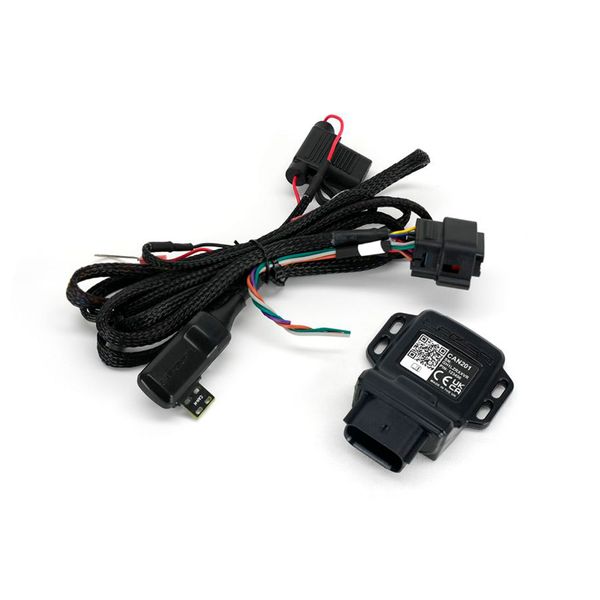

• Includes dongle, wiring harness and user manual
• Four outputs in the wiring harness
