Led bar Lazer Linear 24 Elite - Straight / 68 cm / 188W

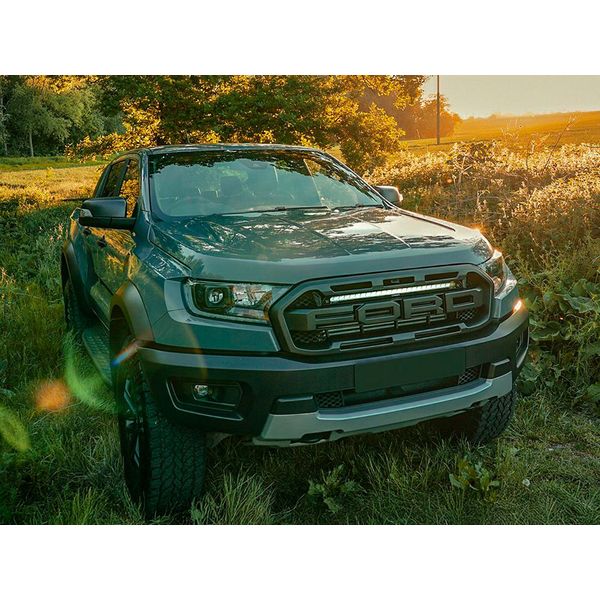

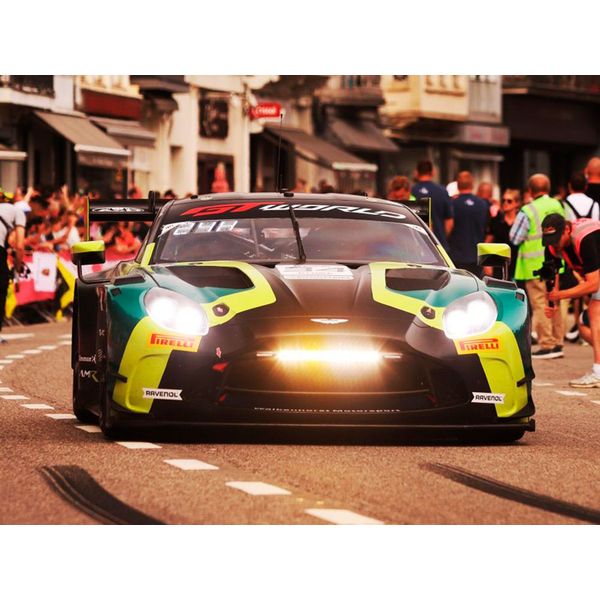

The Lazer Linear 24 Elite is a stylish, slim and efficient led bar that is suitable for both professional drivers and private driving. Thanks to its unique slim design, the bar fits perfectly in the front of practically any vehicle. With its low profile, the extra light can easily be mounted in tighter spaces, because then the led bar is only 40 mm high! Linear 24 Elite is E-approved, they mean approved for road traffic. With its combined light pattern, the light produces a very precise far-reaching spot in the center of the light beam and even diffused light at the edges that illuminates the edges of the road. With its good properties, compact design, E-approval and high luminous flux, this led bar is also suitable for heavier vehicles and work machines.

The lamp's high-efficiency 3W LED, combined with a new type of reflector and lens technology, together produces a luminous flux of up to 12,815 lumens and a range of 563 meters (@ 1 lux). The combined technology defines the light image in a vertical direction and cuts out unnecessary light, making the extra light illuminate exactly where the greatest need for light is. Less vertical dispersion allows more light to be directed towards the edges of the road. With a separate Lazer Linear E-Mark Cap, the light flux can be reduced, so the reference number is reduced to 2 x 17.5.

Content

• Lazer Linear 24 Elite
• Anti-theft bolts
• Side mounts
• Instructions for use
  • Note! The package does NOT include adjustable rail mounts. If desired, they can be purchased separately (2 pcs) here: Rail mount for Extra Light Ramp, Lazer Center Mounting Kit

Contents - Complete package

• Content (see above)
• Universal Extra light holder Registration plate, EU plate
• Rail mount for Extra light ramp, Lazer Center Mounting Kit (rail mounts that enable mounting for the extra light holder)
• Relay cable set Purelux AMP 2-pin Superseal, 12V

Technical specification

• Brand and model: Extra light Lazer Linear 24 Elite - Straight / 68 cm / 188W
• Area of use: As additional light for vehicles/work machines
• LED: 24 x 3W
• Operating voltage: 10-32 V
• Reference number: 2 x 30
• Manufacturer's reported power: 188 W
• Manufacturer's reported luminous flux: 12,815 lm
• Manufacturer's reported range: 1126 m @ 0.25 lux / 563 m @ 1 lux
• Color temperature: 5000 K
• Mounting: Side mounts
• Connector: AMP 2 pin
• Dimensions: 682 x 40 x 62 mm (Width x Height x Depth)
• Weight: 2000 g
• Material: Aluminium
• Other: Unbreakable polycarbonate lens
• Protection class: IP67
• E-approved
• Country of manufacture: United Kingdom
• Months: 60 months
