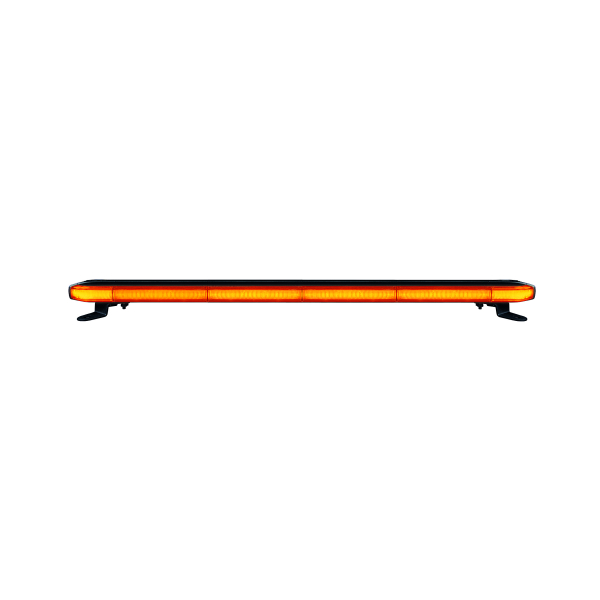

Warning light bar Strands Cruise Light Roof Bar

Strand's Cruise Light Roof Bar flashing lights are a series of bars that function both as functional attention lights and as a stylish addition to any vehicle. The series consists of eight different large and powerful flash light ramps, all of which are united by efficiency, quality, stylish design and low profile. Thanks to the wide selection, this series offers a suitable solution for all possible vehicles! The ramps in the series are ECE R65 class 1 and class 2 approved, so they can be used in European road traffic. The Class 2 marking in the approval means that the ramps have both day and night mode. By using the day mode, the ramp can flash brighter, ensuring the best possible visibility. In the night mode, the light output has been reduced, so that excessive lighting does not dazzle the driver or others moving in the area. There are 13 different flashing functions on the ramps, from which you can choose the one that suits your needs.

The profile of the ramps is elegantly dark and modern. Cruise Light roof ramps are only 36mm high and 120mm wide, allowing for a neat and discreet installation without obscuring the orange attention flashing flash light. In addition, the low ramp reduces air resistance compared to traditional flash light ramps, and thus also reduces noise from wind drafts. The mounting feet raise the ramp slightly from the installation surface, allowing airflow to flow under the ramp. With the small height provided by the legs, the visibility of the light is guaranteed even from, for example, the roof of trucks or other tall vehicles. For attachment, rails run under the ramp, thanks to which the mounting width of the legs can be selected to suit your vehicle. Cruise Light Roof Bar strobe lights illuminate 360°, so you don't have to worry about installation direction either.

The quality and durability of the series flash light ramps are indicated by e.g. protection class IP67, which means that they are completely protected against dust and water. The ramp's lens is made of virtually unbreakable polycarbonate, which means they can withstand tough conditions and applications. Strand's Cruise Light Roof Bar strobe lights can be used in passenger cars and vans as well as as part of lightweight solutions for heavy vehicles and work machines. Thanks to the wide operating voltage (10-30V), the installation can be carried out in both 12V and 24V systems. The flash light ramps are intended for fixed installation and mounting feet are included. Cruise Light is protected against radio interference according to the R10 standard. Three year (36 months) warranty!

Note! You can also buy the handy switch for the ramps here: Switch Strands, Cruise Light Roof Bars.

Content

• Strand's Cruise Light Roof Bar
• Mounting feet, 2 pcs
• Fixing bolts

Technical specification

• Make and model: Flash light ramp Strands Cruise Light Roof Bar
• Area of use: As an attention and flash light ramp in cars/work machines etc.
• Operating voltage: 10-30 V
• Power: 80 / 91 / 97 / 103 / 108 / 114 / 120 / 131 W
• Mounting: Mounting feet, fixing bolts
• Contact: Straight wires, no contact
• Cable length: 500 cm
• Measure:
  • 314.8 x 120 x 36 mm
  • 772 x 120 x 36 mm
  • 924 x 120 x 36 mm
  • 1077 x 120 x 36 mm
  • 1229 x 120 x 36 mm
  • 1382 x 120 x 36 mm
  • 1534 x 120 x 36 mm
  • 1839 x 120 x 36 mm
• Height with foot: 66 mm
• Other: 13 different operating modes, orange light, very low profile, 360° lighting
• Protection class: IP67
• Approvals:
  • E-Approval: ECE R65 Class 1 and 2
  • EMC: ECE: R10
• Warranty: 36 months

Operating modes

• Simple flashing (day mode)
• Simple flashing (night mode)
• Double flashing
• Triple flashing (front, rear, all)
• Triple flashing (side, rear, all)
• Single flashing (each side)
• Single flashing (one page at a time)
• Moving light (inside and out)
• Moving blink
• Continuous light (cruise)
• Candle in the middle
• Pill light on the left
• Pill light on the right

Quick guide

Coupling

• Red: Current
• Black: Earth
• Yellow: Change of operating mode
