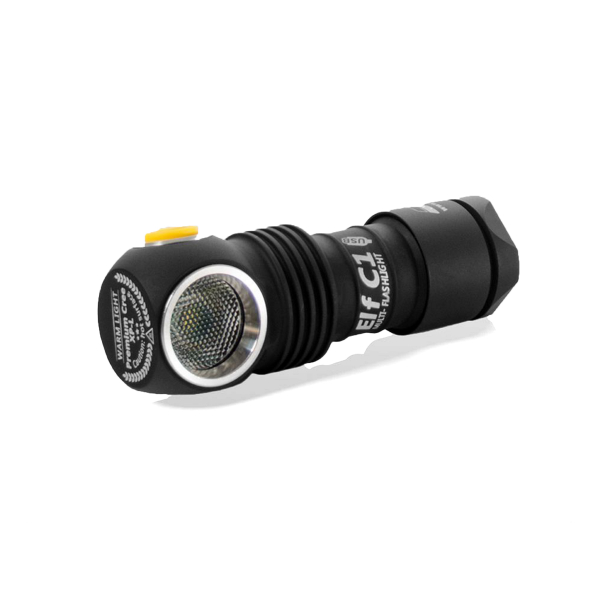

Headlamp Armytek Elf C1, 900 lm

Content

• Headlamp Armytek Elf C1
• Headband
• 18350 Li-Ion battery (900mAh)
• Magnet
• Belt clip
• Wrist strap
• Extra o-rings (2 pcs.)
• Manual

Technical specification

• Brand and model: Armytek Elf C1
• Power supply: 900 mAh 18350 Li-Ion battery (included)
• Manufacturer's reported luminous flux: 840 lm
• Manufacturer's reported range: 102 m
• Burning time (maximum effect) According to the manufacturer: 40 min
• Light image: Combination
• Light modes: 6 pcs
• Dimensions: 112 x 29 mm
• Weight: 65g (light only)
• Protection class: IPX68
• Shock resistance: Drop from 10 meters
• Warranty: 120 months

WARNING! The light output of this headlamp is very high. Although the headlamp has active temperature monitoring that reduces the light output if the fixture overheats, the light energy itself can heat a nearby material to very high temperatures. It is therefore important to follow the safety instructions below:

1. Do not leave the lamp on with an obstacle within 5 cm in front of the lens!
2. Unscrew the bottom piece (the "cork" on the bottom of the lamp) half a turn to break the circuit and prevent accidental switching on, e.g. in a pocket.
3. A strong and efficient lamp is absolutely no toy! Do not let the luminaire be used by a child without strict supervision!

Quick guide

Unscrew the bottom piece and insert the battery with the positive pole inwards. Tighten the bottom piece properly. The light is turned on and off with a simple push of the button. To change the light effect, press and hold the power switch when the lamp is on, then the lamp will cycle through the light modes. When the desired state is found, release the power switch. Maximum power can be accessed from any power mode by double-clicking the button. Charge the lamp by connecting the Micro-USB cable to a USB port on e.g. a power adapter or in a computer and connect the other end to the lamp's charging port.
