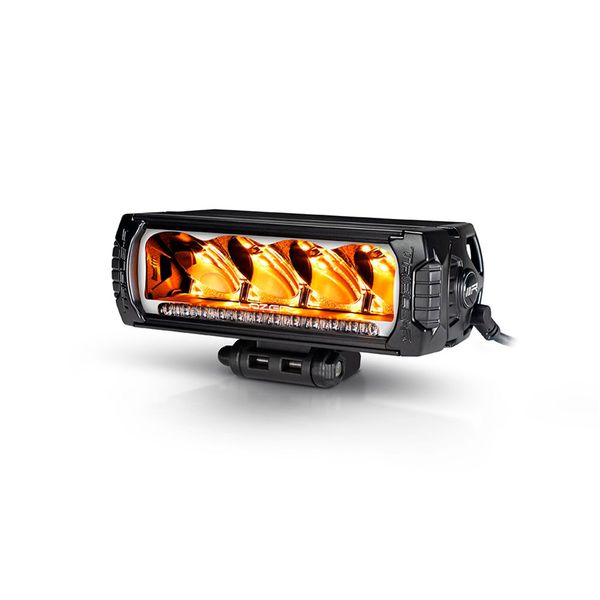

Led bar Lazer Triple-R 750 Beacon - Straight / 23 cm / 52W / Ref. 12.5

The Lazer Triple-R 750 Beacon is the sister model of Lazer's popular Triple-R 750 auxiliary light, which is equipped with the same great performance and an orange and white parking light. In addition, the Beacon model has been introduced with two different power modes, a slightly wider beam, a special Welcome mode, Flash-to-Dim function and an R65-approved warning light, making it an excellent choice for both on-road and off-road traffic. The Triple-R 750 Beacon is an auxiliary light designed specifically for the needs of heavy equipment and construction vehicles, which produces a light output of 5400 lumens in the off-road E-Boost mode, according to the manufacturer, and a beam of up to 442 meters (1 lux) for its size. Thanks to its small size and low reference number (Ref. 12.5), several lamps can be easily installed in parallel, which allows both the range and width of the light beam to be increased even further. The panel's slightly wider beam than other Triple-R series lights offers not only long range, but also more illumination to the edges of the road, ensuring that visibility is not limited to far ahead. In addition, the panel's 5000K color temperature reduces eye strain and makes using the lights more pleasant.

The Triple-R 750 Beacon warning light is approved for road traffic according to the ECE R65XA1 standard, so it can also be used in traffic outside construction sites. The warning light can be used, for example, in special transport, when the vehicle is moving from the road to the construction site or in traffic control. The bright orange warning light illuminates both the top and bottom edges of the lens, so that no one will miss it even in bright daylight. In addition to its excellent lighting properties, the Triple-R 750 Beacon also features a parking light that stylishly illuminates the entire lens, a special Welcome mode, where the parking light turns on and off dynamically as a greeting, and the so-called "Flash To Dim" function, which allows the driver to easily switch between road-approved and unlimited power mode while driving whenever they want.

The Triple-R 750 Beacon's high-quality and durable aluminum frame, virtually unbreakable polycarbonate lens, and advanced GoreTex seal (allowing moisture to escape from the inside of the light) ensure that the light will not fail even in the toughest use. In addition, the light is fully protected from dust and water according to the IP68 rating, and can withstand temporary immersion up to 1.5 meters if necessary. Five-year (60-month) warranty!

Delivery content

• Lazer Triple-R 750 with Parking Light GEN2
• Power cable with 6-pin Superseal connector, 25 cm
• Width-adjustable middle leg
• Connection and installation instructions

Specifications

• Make and model: Lazer Triple-R 750 Beacon
• Intended use: As an additional light in SUVs / construction machinery
• Operating voltage: 10-32V
• Reference number: - (E-Boost) / 12.5 (Road mode)
• Manufacturer's declared power: 52 W
• Manufacturer's stated current consumption: 2.16A @ 24V
• Manufacturer's declared luminous efficacy: 5400 lm (E-Boost)
• Manufacturer's stated range: 442 m @ 1 lux / 884 m @ 0.25 lux (E-Boost)
• Manufacturer's stated color temperature: 5000 K
• Connector: 6-pin Superseal
• Cable length: 25 cm
• Dimensions: 230 x 73 x 105 mm (Width x Height x Depth)
  • Height with foot: 73-103 mm
• Weight: 1000g
• Frame: Anodized aluminum
• IP rating: IP68
• Approvals: EMC: ECE R10, R65XA1, R148, R149*
  • *Road traffic approval does not apply to E-Boost mode
• Made in the UK
• Warranty: 60 months

Installation guide

You can find the manufacturer's installation and connection guide by clicking here.
