Warning light Purelux Strobe Ultra Slim Square - 8W / White/Red

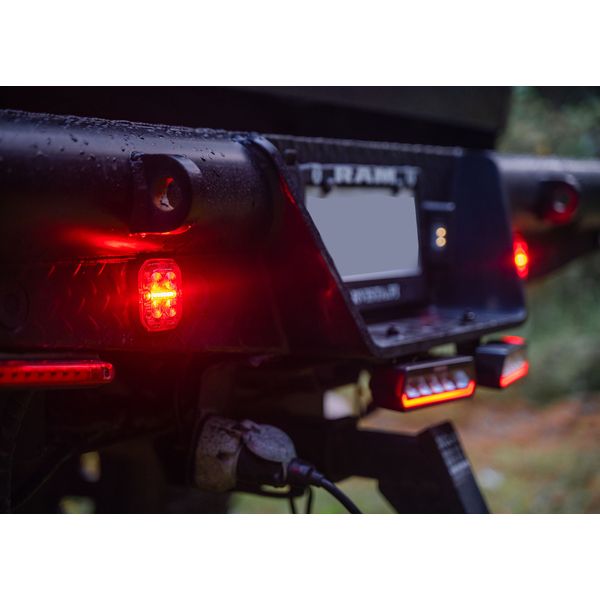

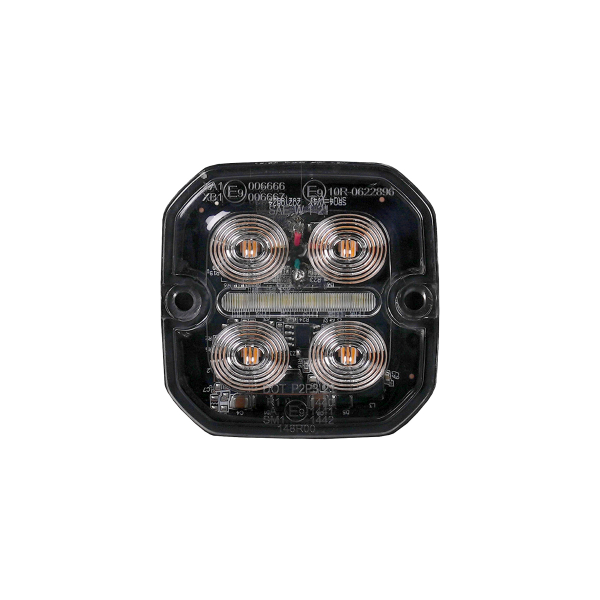

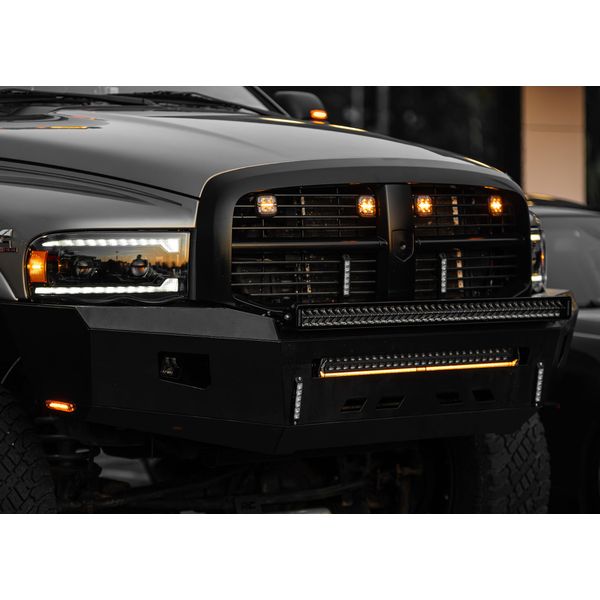

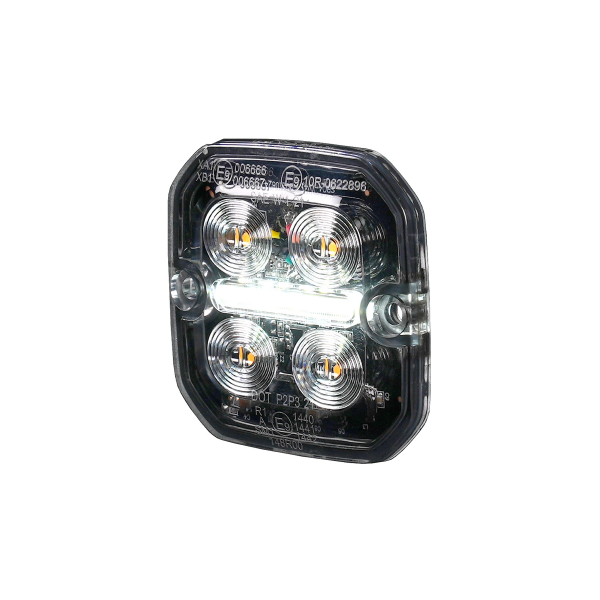

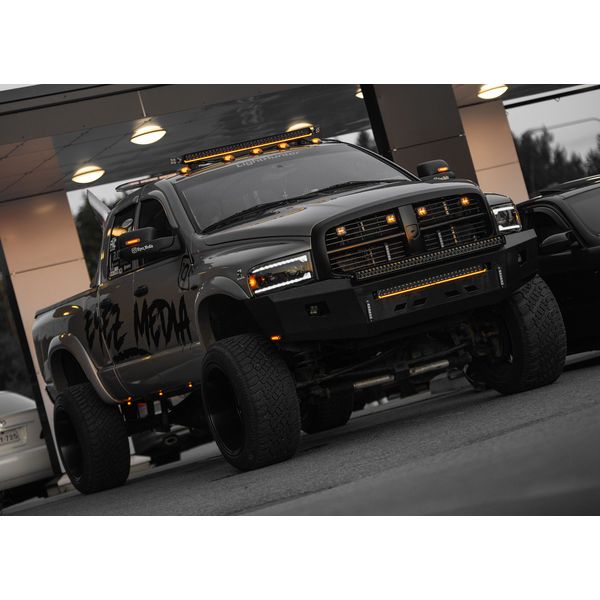

The Purelux Strobe Ultra Slim Square is a stylish and versatile warning/strobe light, which has been designed as part of the equipment for heavy equipment and work machines. In addition to the orange warning light, the light also has a white and red parking light, so it can be used not only as a warning light but also as a parking light. Strobe Ultra Slim Square is suitable for mounting on e.g. rear, side or bumper of the vehicle. Thanks to its thin fixture and design, the Strobe Ultra Slim Square fits neatly and discreetly into the vehicle. The Purelux Strobe Ultra Slim Square is equipped with four orange 3W LEDs and six 1W red or white parking LEDs. For the orange warning light, the Strobe Ultra Slim Square has up to 20 different operating modes.

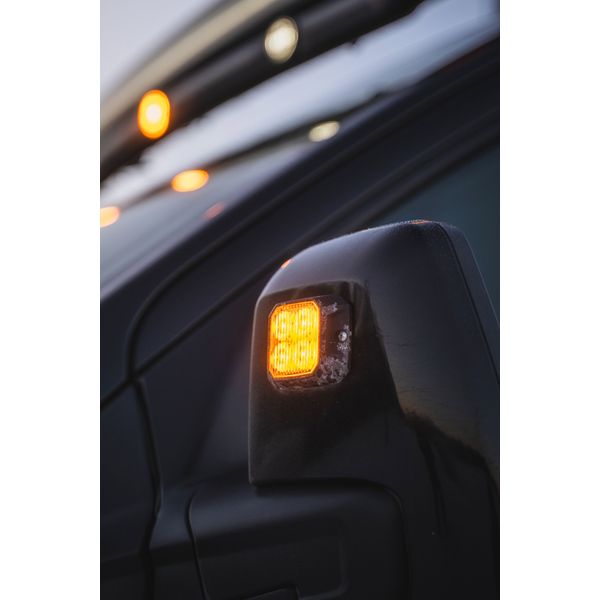

Purelux Strobe Ultra Slim Square is approved for use in road traffic according to the ECE R65XA1 class, which means that it can also be used for road works in traffic. Thanks to the wide operating voltage, the lamp can be connected to both 12V and 24V systems. The elegant appearance combined with the small size ensures that the warning light fits practically all vehicles. Strobe Ultra Slim Square is also protected against radio interference according to R10 class. Two year (24 month) warranty!

If desired, several lamps can be connected together to work together, then the lamps can be synchronized with each other. In this way, the warning lights can be made to flash in the same operating mode at the same time, so that the lighting is uniform. The lamps can be synchronized with each other by connecting the yellow wires coming from the lamp. If the white wires in addition to the yellow one are connected to the power (+) of some of the lights, they are always lit when the others (the ones that do not have the white wire connected) are off and vice versa. In this way, the lights can also be synchronized so that they flash at different speeds, i.e. alternately. In this case, for example, half of a large number of lights can be made to flash at a different time than the other half. Of course, this can also be activated with only two lights.

Note! The light can also be synchronized with the Purelux Strobe Ultra Slim Square - 8W / Orange / Red equipped with a red and orange parking light from Purelux.

Content

• Purelux Strobe Ultra Slim Square
• Rubber collar for lens
• 3M tape for mounting
• Connection and installation instructions (EN)

Technical specification

• Brand and model: Purelux Strobe Ultra Slim Square
• Area of use: As a warning and attention light
• LED: 4 x 3W and 6 x 1W
• Light colour: Orange
• Parking lights: Red and orange
• Operating voltage: 10 - 30V
• Manufacturer's reported power: 8 W
• Operating modes: 20

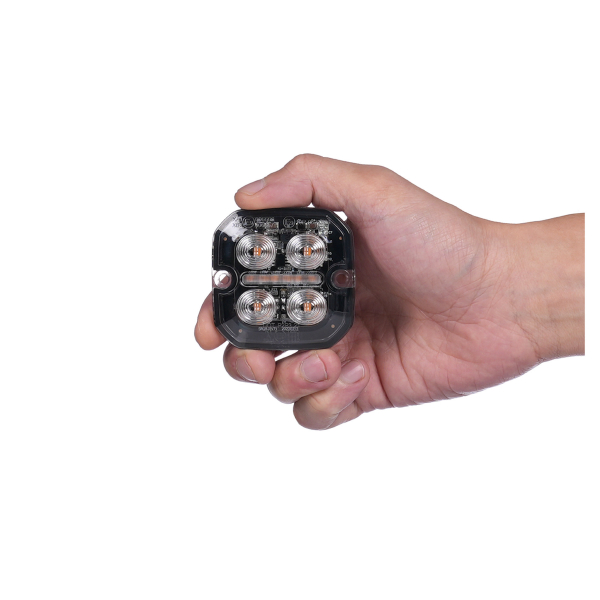

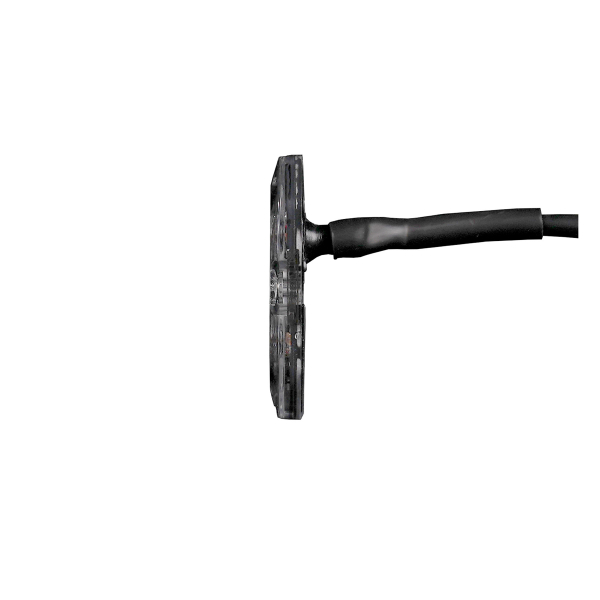

• Dimensions: 60 x 60 x 7 mm (Length x Width x Depth)
• Weight: 65 g
• Cable length: approx. 50 cm
• Approvals: EMC: ECE: R10, R65XA1, R148
• Protection class: IP67
• Warranty: 24 months
• Importer: Handshake.fi

Operating modes

• Single flash
• Double flash
• Single flash(SAE)
• Dual Flash (SAE)
• Triple Flash (SAE)
• Quad flash(SAE)
• Multiple flashes (SAE)
• Mega flash (SAE)
• Single flash (combination)
• Double flash (combination)
• Single+ double flash (fast)
• Single + double flash (slow)
• Single + Quad flash
• Single + Mega flash
• Double flash + mega flash
• Single + triple flash + multi flash
• Distorted
• Random
• Constant light
• Mega - Flat

Quick guide

Coupling

• Red: Orange attention light (+)
• Black: Ground (-)
• Green: White parking light (+)
• Orange: Red parking light (+)
• Yellow: Change of operating mode / Synchronization / Reset
  • Synchronization: select the same operating mode for the lamps to be synchronized, then connect the yellow wires to the lamps. In this way, the lamps flash in the same rhythm and change operating mode (all together) when the operating mode of a lamp changes.
  • Change operating mode: Apply power (+) to the yellow wire, the lamp will change operating mode. Can be implemented with a circuit breaker (the cable is connected to the battery or other power source, and a pressure switch is inserted in between)
• White: Alternate sync
  • Alternating synchronization: If the white wires of some of the lights besides the yellow one are connected to the power (+), they are always lit when the others (white wires not connected) are off and vice versa. In this way, the lights can also be synchronized so that they flash at different rates.
