Auxiliary light kit Lazer Toyota Hilux (2021+)

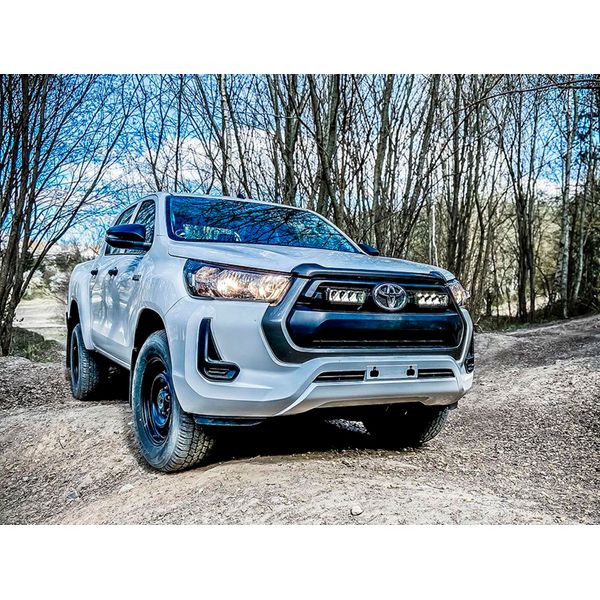

A complete, brand- and model-specific additional light package containing everything you need for 2021 and newer Toyota Hilux passenger cars. With this set, 2 pcs of Lazer Triple-R 750 Elite GEN2 lamps or 2 pcs of Lazer Linear 6 Elite lamps can be neatly installed in the front grille of the above-mentioned object, so that the lamps remain stylishly flush with the front grille. So the installation does not disturb the appearance of the vehicle, but rather improves it even more! And it's safer to drive with the help of two additional lights. Choose the one that suits you best from the two packages, more information about the lighting below! Five-year (60 months) warranty!

The package comes with two additional Lazer light panels of your choice (Triple-R 750 Elite GEN2 or Linear 6 Elite), all the fasteners and screws needed for installation, a ready-made wiring harness, and installation and connection instructions. The fasteners for the front grill are made of a very durable composite material, which is especially known for its strength and excellent resistance against UV radiation. The fasteners are also completely weather and chemical resistant, which ensures that the installation remains neat year after year.

Note! In many new cars, especially those equipped with LED lights, the lights are controlled via the so-called CAN bus. Because of this, the lights no longer have their own power cord. If you can't find any wire for the dead end, from which the excitation current could be tapped for the additional light, you have to take the excitation from the car's CAN bus. Installing an additional light on the CAN bus is slightly different from traditional installation, and a separate relay is required for this connection: CAN bus switching relay for additional lights, 12V . If you estimate the need for a CAN relay in your connection, the car importer or brand shop will certainly help you with this.

Lazer Triple-R 750 Elite GEN2 (E-Boost)

The Lazer Triple-R 750 Elite GEN2 is the smallest model of the very popular additional light series - the length of the light is 230 mm and the weight is 1000 grams. It is therefore very small and lightweight, which makes it at home in inconspicuous bumper installations. The Triple-R 750 Elite GEN2 uses Lazer's patented E-Boost technology, which enables the light to be used at a lower power when driving in normal road traffic, and only by removing the "block" at the end of the panel can this E-Boost mode be activated for e.g. off-road use, which increases the light output notably. The light output stated by the manufacturer in the mode allowed for road traffic is 1267 lumens and in E-Boost mode 5068 lumens per lamp, i.e. with the two lamps in the package, a maximum light output of up to 10136 lumens is achieved! The pleasant light pattern efficiently illuminates exceptionally far - the range measured by the manufacturer for two lamps is up to 679 meters @ 1 lux (in E-Boost mode). In its initial meters, the spotlight also spreads well to the side of the benches.

• Light output: 5068 lm (E-Boost) - With two lamps 10136 lm (E-Boost)
• Range: 517 m @ 1 lux - With two lights 679 m @ 1 lux
• Reference number: 2 x 12.5
• Dimensions of the individual lamp: 230 x 73 x 105 mm (WxHxD)
• Weight of individual lamp: 1000 g

Lazer Linear 6 Elite

Lazer Linear 6 Elite is the smallest model of the very popular additional light series - the length of the light is 220 mm and the weight is only 495 grams. It's very slim and low profile construction makes it at home in discreet bumper installations. For a small panel, the Linear 6 Elite is exceptionally efficient. According to the manufacturer, it offers a light output of up to 4050 lumens per lamp, which means that with the two lamps in the package, a light output of up to 8100 lumens is achieved! The precisely vertically delimited light pattern does not create a disturbing "ball of light" in front of the vehicle, but the Linear 6 Elite forms a very pleasant composite pattern that illuminates both effectively far ahead and broadly to the edges of the road. The range measured by the manufacturer for two lamps is 398 meters @ 1 lux.

• Light output: 4050 lm - With two lamps 8100 lm
• Range: 563 m @ 1 lux - With two lights 796 m @ 1 lux
• Reference number: 2 x 17.5
• Dimensions of the individual lamp: 232 x 40 x 62 mm (WxHxD)
• Weight of individual lamp: 459 g

Delivery content

• 2 x additional Lazer lights selected from the product options
• Relay wiring kit (12V) for two lights
• Brand- and model-specific fasteners
• Anti-theft screws
• Installation and connection instructions

Installation guide

You can find the manufacturer's connection and installation instructions (EN) by clicking here (opens in a new window).
