Work light Purelux Panther Alpha 90, 90W, Wide

Purelux Panther Alpha is a spectacular new generation work light series designed for challenging conditions. Alpha lamps bring something completely new to the work light market with a unique design, a wide light pattern inspired by additional lights and a two-color parking/position light. In addition, the lights are available in two different color temperatures, which enables the creation of individual lighting solutions. Panther Alpha 90 produces a light output of 6400 lm, and thanks to the advanced reflector technology, its light pattern is horizontally wide, but vertically softly delimited, so that the light is maximally directed to the working area, but the glare of the environment of the illuminating area has been significantly reduced. Due to its size and power, the Panther Alpha 90 is an excellent choice for situations where maximum light output and extensive lighting are needed without compromising on style, e.g. in various work machines, transport vehicles and SUVs.

The Panther Alpha series lights are available in both 4000K and 5000K color temperature versions, which enables the creation of optimal lighting: the neutral 5000 kelvin color temperature is the best choice for general machine lighting, but the slightly warmer 4000K color temperature works better, e.g. in snowy or dusty conditions, because the warmer color tone reduces glare in e.g. snow or dust. Glare is also prevented by the light beam used in the Alpha series: the light pattern, which is limited at the top and bottom, ensures that the light is not directed at unnecessary snowfall or dust or fog floating in the air, but that the light is directed only at the work object. The lights can also be easily directed so that the glare of others working in the vicinity can be minimized.

In addition to excellent lighting properties, Panther Alpha lights are also extremely stylish, and their unique design language is completely different from other work lights on the market. The great design combined with the dark profile and the orange or red parking light at the bottom of the frameless lens make the Alpha lights a unique addition to any vehicle. In addition, these lamps have been created to withstand challenging conditions, as evidenced by e.g. their highest possible tightness rating (IP69K), a frame made of durable aluminum and a lens made of virtually unbreakable polycarbonate. The lights also have an intelligent temperature regulation system, which prevents overheating even during long working days and guarantees safe and worry-free working even during seasonal work. Wide operating voltage (9-36V) enables installation in both 12V and 24V systems.

The lights of the Panther Alpha series have a DT-4 connector already integrated into the power cord, which makes installation easier. The counterpart of the connector is also supplied. Panther Alpha 90 is protected against radio interference according to R10 and CISPR25 Class 3 classifications. Three-year (36 months) warranty!

NOTE! Its also possible to make the position light strobe like a warning light with this strobe controller: Purelux Strobe Controller.

Models of Panther Alpha series

• Purelux Panther Alpha 20, 20W, Wide
• Purelux Panther Alpha 20, 20W, Spot
• Purelux Panther Alpha 30, 30W, Wide
• Purelux Panther Alpha 60, 60W, Wide
• Purelux Panther Alpha 60, 60W, Spot
• Purelux Panther Alpha 90, 90W, Wide

Delivery content

• Purelux Panther Alpha 90
• Sturdy mounting leg
• Fixing bolt
• Power cable with DT-4 connector, 50 cm
• The counterpart of the connector
• Connection and installation instructions (EN, FI, SE, NO, DK)

Note! There are two scratch shields available for the lamp, yellow and black. With yellow, the tone of the light can be changed to yellow, which improves visibility especially in bad conditions, such as snow, heavy fog or rain.

Technical information

• Brand and model: Purelux Panther Alpha 90
• Purpose: As a work light in work machines, heavy equipment and cars
• Operating voltage: 9-36V
• Power consumption measured by Valostore
  • Work light: 3.25A @ 24V
  • Parking light: 0.33A @ 24V
• Theoretical power declared by the manufacturer: 90 W
• Power measured by Valostore
  • Work light: 78 W
  • Parking light: 8 W
• Light output stated by the manufacturer: 6400 lm
  • Measured by Valostore: 6332 lm
• Range (measured by Valostore): 92 m @ 1 lux
• Manufacturer's stated color temperature: 4000K / 5000K
  • Measured by Valostore: - / 5010 K
• Mounting: Mounting base
• Connector: DT-4
• Cable length: 50 cm

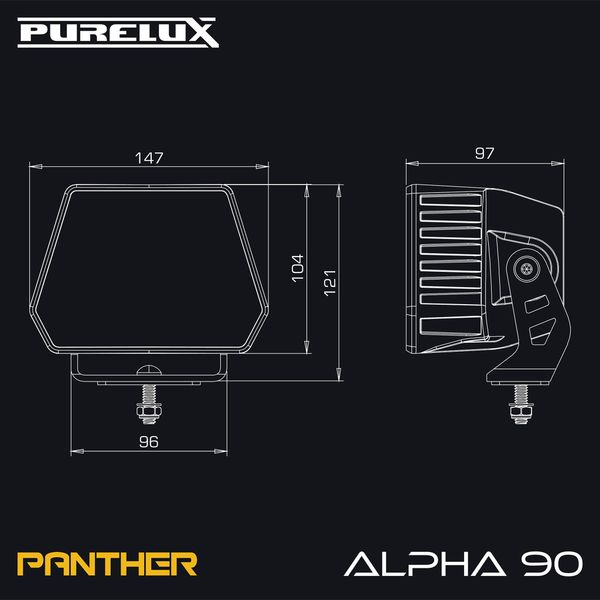

• Dimensions: 147 x 104 x 97 mm (Width x Height x Depth)
  • Height with foot: 121 mm
• Weight: 1222 g
• IP rating: IP69K
• Operating temperature: -40°C to +60°C
• Approvals: EMC: ECE: R10, CISPR25 Class 3, CE, RoHS
• Warranty: 36 months

Installation guide

You can find the manufacturer's connection and installation instructions (FI/SE/NO/DK/EN) by clicking here.
