LED strip / Work light AGGE 230V - 1500 lm/m, 20 m

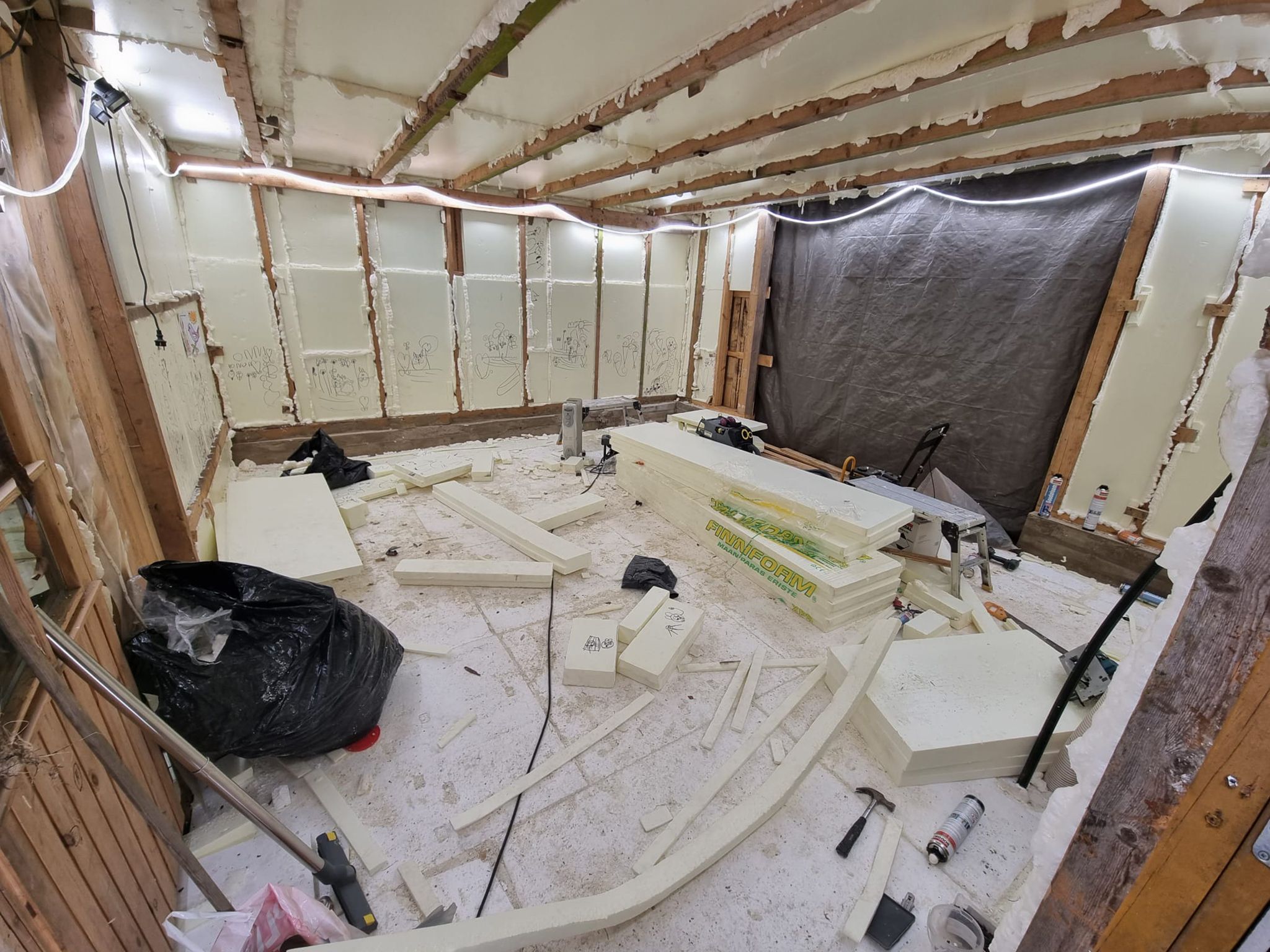

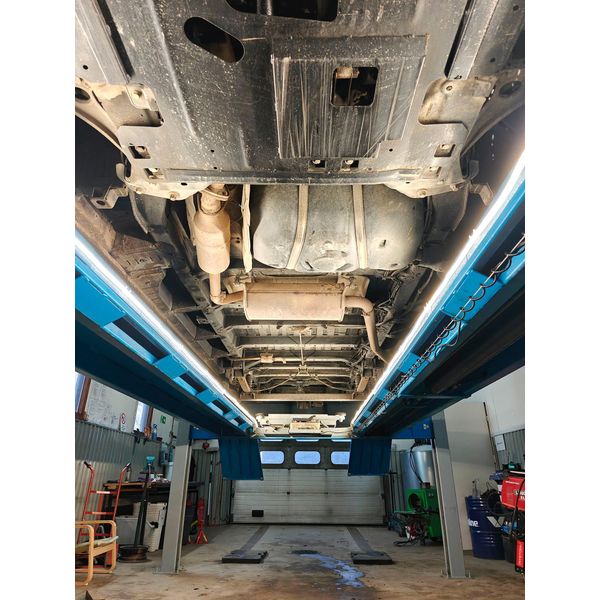

AGGE 230V is an LED strip suitable for both professional and home use, powered directly from mains power (230V), which helps in general lighting of construction sites, construction and renovation sites and industrial areas. The LED strip can be used to illuminate, for example, stairs, scaffolding and other difficult spaces such as mine passages. The highly flexible and durable structure, the neutral color temperature and the strong light flow make the LED strip optimal for demanding daily use even when the working environment is challenging. The strip is completely waterproof according to the IP65 classification, so it can be used without worry even in damp rooms and outdoors all year round.

As a home use, the strip is excellent as lighting of, for example, gardens, terraces, garages and other indoor spaces. The LED strip can also be used, for example, at a cabin to illuminate the beach or the jetty, the strip has largely unlimited uses. AGGE 230V has a color rendering index, or so-called CRI value, of Ra>80, which reproduces natural light. The strip is therefore also suitable for places that rely on natural light, for example renovation sites during painting work. The LED strip has a pleasant color temperature of 4000K with a luminous flux of 1500 per metre. If necessary, the strip can be extended up to 100 meters or 1200 W. The LED strip distributes the light evenly and provides a wide illumination thanks to its lighting angle of 120°. The LED strip is supplied in a convenient roll equipped with wheels and a pull handle, from where the strip can be easily unrolled and rolled back for storage.

Both ends of the LED strip have a contact cap, one of which can be connected to a power cord and the other end can be connected further with another strip, if necessary. You can buy either just one LED strip or a complete set, which comes with a 170 cm long power cord. If necessary, the power cord can also be purchased separately: Power cord AGGE, 170 cm. The strip can be extended up to one hundred meters, or 1200W, so that a larger area can be illuminated at once.

As accessories for the LED strip, a splitter piece is available, which can be used to branch off two separate light strips from one power cord, and in addition, plastic brackets are also available, with which the strip can be attached to the wall or ceiling to hang. A mounting strip is also available for attaching the tape, which allows it to be installed neatly. Magnetic cable clips can also be used for fastening, which are available in both 22 mm and 31 mm sizes. There's also an emergency power bank available for the light strip, for example in case of power outages.

NOTE! The tape works with 230V direct current (instead of alternating current), which means that it always requires its own power cord to be used when connecting to the mains. Straighten the entire strip before turning on the power to avoid overheating!

The tape is available in seven different lengths, in addition to which the 15 m, 25 m and 50 m tapes are available both with and without a reel. Other available options can be found below:

• LED strip AGGE 230V - 1500 lm / m, 3 m
• LED strip AGGE 230V - 1500 lm / m, 5 m
• LED strip AGGE 230V - 1500 lm / m, 10 m
• LED strip AGGE 230V - 1500 lm / m, 15 m
• LED strip AGGE 230V - 1500 lm / m, 15 m (Coil version)
• LED strip AGGE 230V - 1500 lm / m, 20 m
• LED strip AGGE 230V - 1500 lm / m, 25 m
• LED strip AGGE 230V - 1500 lm / m, 25 m (Coil version)
• LED strip AGGE 230V - 1500 lm / m, 50 m
• LED strip AGGE 230V - 1500 lm / m, 50 m (Coil version)

From this product page, you can buy a 20 m LED strip with a power cord, a 20 m extension piece for an AGGE LED strip (not including a power cord), or a complete set that includes a light strip with a power cord and 4 pcs of 20 m extension piece (a total of 100 m of strip). In addition, you can buy a set that includes a 20 m strip with a power cord and a power bank for the LED strip, which serves as an emergency backup in the event of a power outage, for example. You can find out more about the features of the backup power source here: AGGE Emergency Power Bank.

Delivery content (Strip with power cord)

• 1 x LED strip, 20 m
• Power cord with DC transformer
• Instructions

Delivery content (Extension, 20 m)

• 1 x LED strip, 20 m
• Operating instructions

Delivery content (Strip with power cord + 4 extensions (100 m))

• 5 x LED strip, 20 m
• Power cord with DC transformer
• Operating instructions

Delivery content (Strip with power cord + Power Bank)

• 1 x LED strip, 20 m
• Power cord with DC transformer
• Operating instructions
• AGGE Emergency Power Bank

Technical specification

• Brand and model: AGGE 230V, 20 m
• Area of use: Spot lighting, home use outside and inside
• Luminous flux: 1500 lm / m, total. 30,000 lm
  • Luminous flux measured by Valostore: 1250 lm / m
• Power: 230 V
• Stated power consumption: 12W / m, total. 240W
• Dimensions LED strip: 16 x 9 mm (Width x Height)
• Dimmable: No
• Color temperature: 4000 K
• Color rendering (CRI): Ra80 +
• Illumination angle: 120°
• Other: The strip can be extended up to 100 meters
• Protection class: IP65 (strip and connector) / IP44 (connector)
• Protection class: II
• Operating temperature: -20°C - +45°C
• Storage temperature: -10°C - +30°C
• Warranty: 12 months

Instructions for use

Connection of LED strips

1. Turn the contact cover counterclockwise to remove it from the first LED strip
2. Disconnect the power cable from the second set of LED strips
3. Connect the LED strip sets by connecting the female and male connectors. Tighten the connection cap.
4. Repeat the previous steps for the following sets of LED strips.
5. Finish by attaching the end cap to the last LED strip and tighten carefully to prevent it from loosening or water entering the cap.

ATTENTION! When connecting the LED strips, make sure that the power cord is not connected to the power outlet. Do not exceed the limit of 100 meters or the maximum power value of 1200 W specified by the manufacturer! Unroll the entire strip before turning on the power to avoid overheating!

Installation of LED strip

• Unroll the entire strip before turning on the power to avoid overheating! Make sure all connections are properly tightened. Mount the LED strip according to the instructions with the fixing accessories intended for mounting and make sure that the surface is free from hazardous substances such as water, flammable gases or fine dust. Connect the power cable to the 230V power outlet.

You can find the manufacturer's user manual by clicking here.
