LED strip / Work light AGGE 230V - 1500 lm/m, 5 m

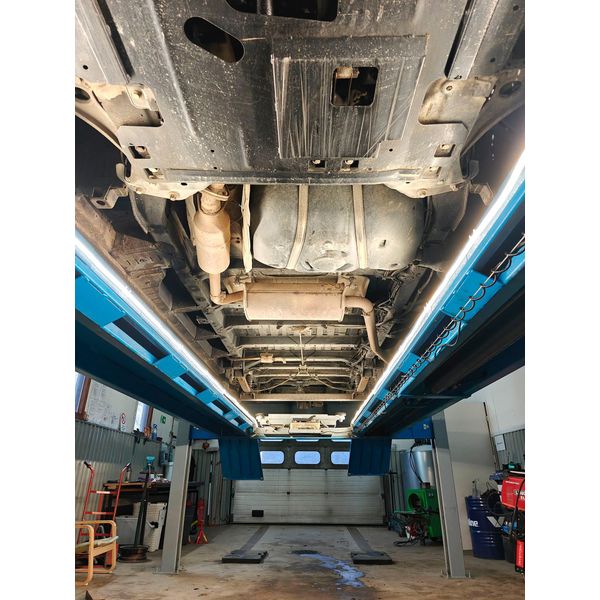

The AGGE 230V LED strip is suitable for both professional and home use, and works directly from mains power (230V), which helps, for example, in the general lighting of construction sites, construction and renovation sites, and industrial areas. With the light strip, you can easily illuminate e.g. staircases, scaffolding and other difficult objects, such as mine tunnels. The highly flexible and durable structure, neutral color temperature and excellent light output make the tape optimal for demanding daily use even when the operating environment is challenging. According to the IP65 classification, the light is completely waterproof and it can withstand changing conditions perfectly, so it can be used without worry even in damp rooms and outdoors, regardless of the season.

In home use, the strip is suitable, for example, for lighting garden fences, terraces, house borders or warehouses/garages, as well as indoors in any space. The light strip can also be used e.g. in a cottage for lighting the beach or pier, i.e. there are practically unlimited uses for it. The tape has a CRI value (color rendering index) of over 80, which corresponds well to natural light. Therefore, it can also be used in tasks that require precision, such as interior painting. The color temperature of the AGGE light strip is an eye-pleasing 4000K, which makes it an excellent light source for both work and home conditions. If necessary , the light strip can be extended up to 100 meters long (1200 W), so the lighting can always be adjusted to suit the use. The strip has 180 LEDs per meter, and its light output is up to 1500 lm/m. The opening angle of the light is 120°, so the light is evenly and widely distributed in the environment.

At one end of the LED strip there is a ready place for the power cord, and with the help of the connector at the other end, the strip can be extended up to a hundred meters (1200W), which allows you to illuminate even very large areas at once.

As accessories for the LED strip, a splitter piece is available, which can be used to branch off two separate light strips from one power cord, and in addition, plastic brackets are also available, with which the strip can be attached to the wall or ceiling to hang. A mounting strip is also available for attaching the tape, which allows it to be installed neatly. Magnetic cable clips can also be used for fastening, which are available in both 22 mm and 31 mm sizes. There's also an emergency power bank available for the light strip, for example in case of power outages.

NOTE! The tape works with 230V direct current (instead of alternating current), which means that it always requires its own power cord to be used when connecting to the mains. Straighten the entire strip before turning on the power to avoid overheating!

The tape is available in seven different lengths, in addition to which the 15 m, 25 m and 50 m tapes are available both with and without a reel. Other available options can be found below:

• LED strip AGGE 230V - 1500 lm / m, 3 m
• LED strip AGGE 230V - 1500 lm / m, 5 m
• LED strip AGGE 230V - 1500 lm / m, 10 m
• LED strip AGGE 230V - 1500 lm / m, 15 m
• LED strip AGGE 230V - 1500 lm / m, 15 m (Coil version)
• LED strip AGGE 230V - 1500 lm / m, 20 m
• LED strip AGGE 230V - 1500 lm / m, 25 m
• LED strip AGGE 230V - 1500 lm / m, 25 m (Coil version)
• LED strip AGGE 230V - 1500 lm / m, 50 m
• LED strip AGGE 230V - 1500 lm / m, 50 m (Coil version)

From this product page, you can buy a 5 m LED strip with a power cord, a 5 m extension piece for an AGGE LED strip (not including a power cord), or a complete set that includes a light strip with a power cord and 4 pcs of 5 m extension piece (a total of 25 m of strip). In addition, you can buy a set that includes a 5 m strip with a power cord and a power bank for the LED strip, which serves as an emergency backup in the event of a power outage, for example. You can find out more about the features of the backup power source here: AGGE Emergency Power Bank.

Delivery content (Strip with power cord)

• 1 x LED strip, 5 m
• Power cord with DC transformer
• Instructions

Delivery content (Extension, 5 m)

• 1 x LED strip, 5 m
• Operating instructions

Delivery content (Strip with power cord + 4 extensions (25 m))

• 5 x LED strip, 5 m
• Power cord with DC transformer
• Operating instructions

Delivery content (Strip with power cord + Power Bank)

• 1 x LED strip, 5 m
• Power cord with DC transformer
• Operating instructions
• AGGE Emergency Power Bank

Specifications

• Product: AGGE 230V, 5 m
• Purpose: Construction site lighting, home use outside and inside
• Apparent light output: 1500 lm / m, total 7500 lm
  • Light output measured by Valostore: 1250 lm / m
• Operating voltage: 230 V (direct current)
• Apparent power consumption: 12W / m, total 60 W
• Dimensions of the LED strip: 16.3 x 9 mm (Width x Height)
• Dimmable: No
• Color tone: 4000 K
• Color rendering (CRI): Ra80+
• Light opening angle: 120°
• Waterproof: IP65
• Protection class: II
• Operating temperature: -20°C to +45°C
• Storage temperature: -10°C to +30°C
• Other: The tape can be extended up to 100 meters
• Warranty: 12 months

Quick guide

Connecting LED strips to each other

1. Turn the connector cap counterclockwise to disconnect it from the first LED strip
2. Disconnect the power cable from the second set of LED strips
3. Connect the LED strip sets by connecting the female and male connectors together. Tighten the connection cap.
4. Repeat the previous steps for the next sets of LED strips.
5. Attach the end cap of the tape and tighten carefully so that it does not come off and water does not get inside the cap.

NOTE! Make sure the power cable is not attached to the power plug when connecting the strips together. Do not exceed the limit of 100 meters stated by the manufacturer or the maximum power value of 1200 W! You can't break the tape either. Straighten the entire strip before turning on the power to avoid overheating!

Implementation of the LED strip

• Straighten the entire strip before turning on the power to avoid overheating! Make sure the LED strip connections are properly tightened. Install the LED strip according to the instructions and with the fixing accessories intended for fixing, and make sure that there are no hazardous substances such as water, flammable gases or fine dust in the environment. Attach the power cable to the 230V power plug.

You can find the manufacturer's user manual (FI/SE/NO/DK/EN) by clicking here.
